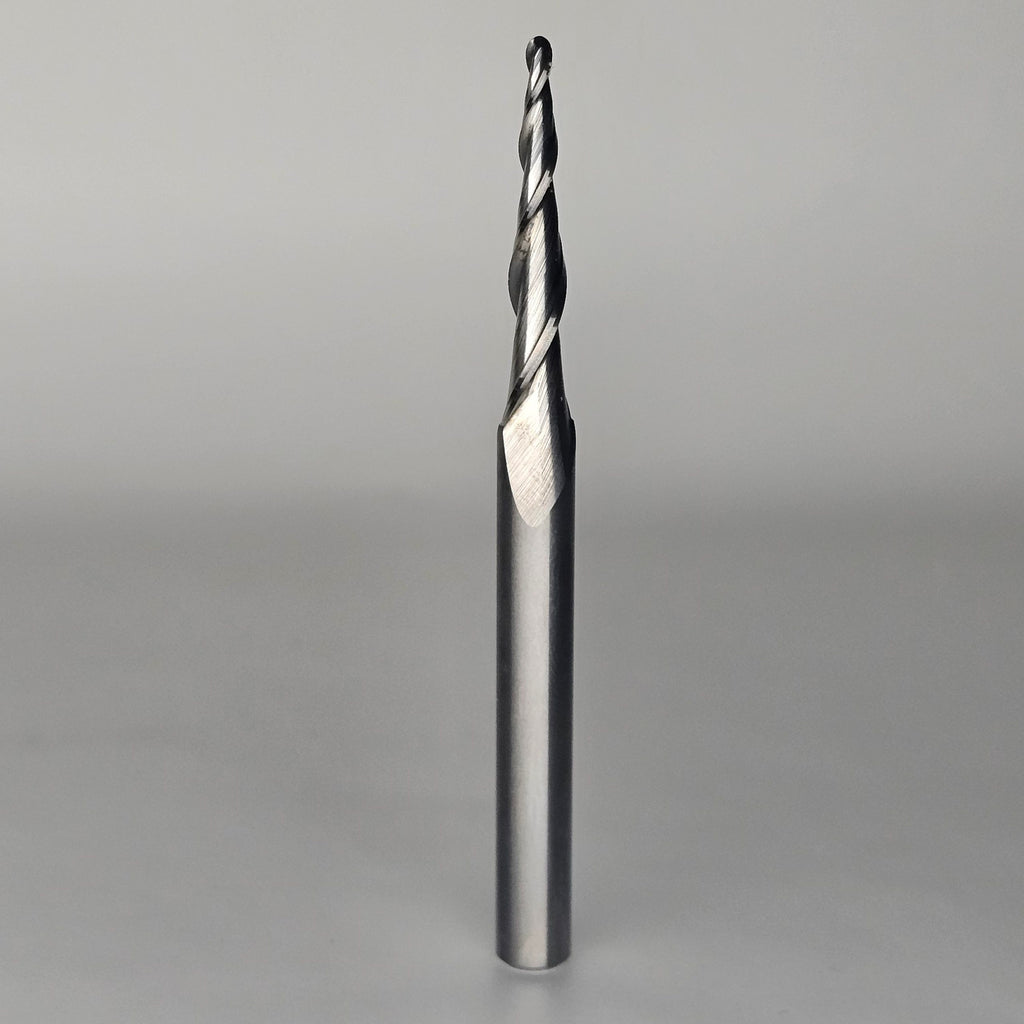

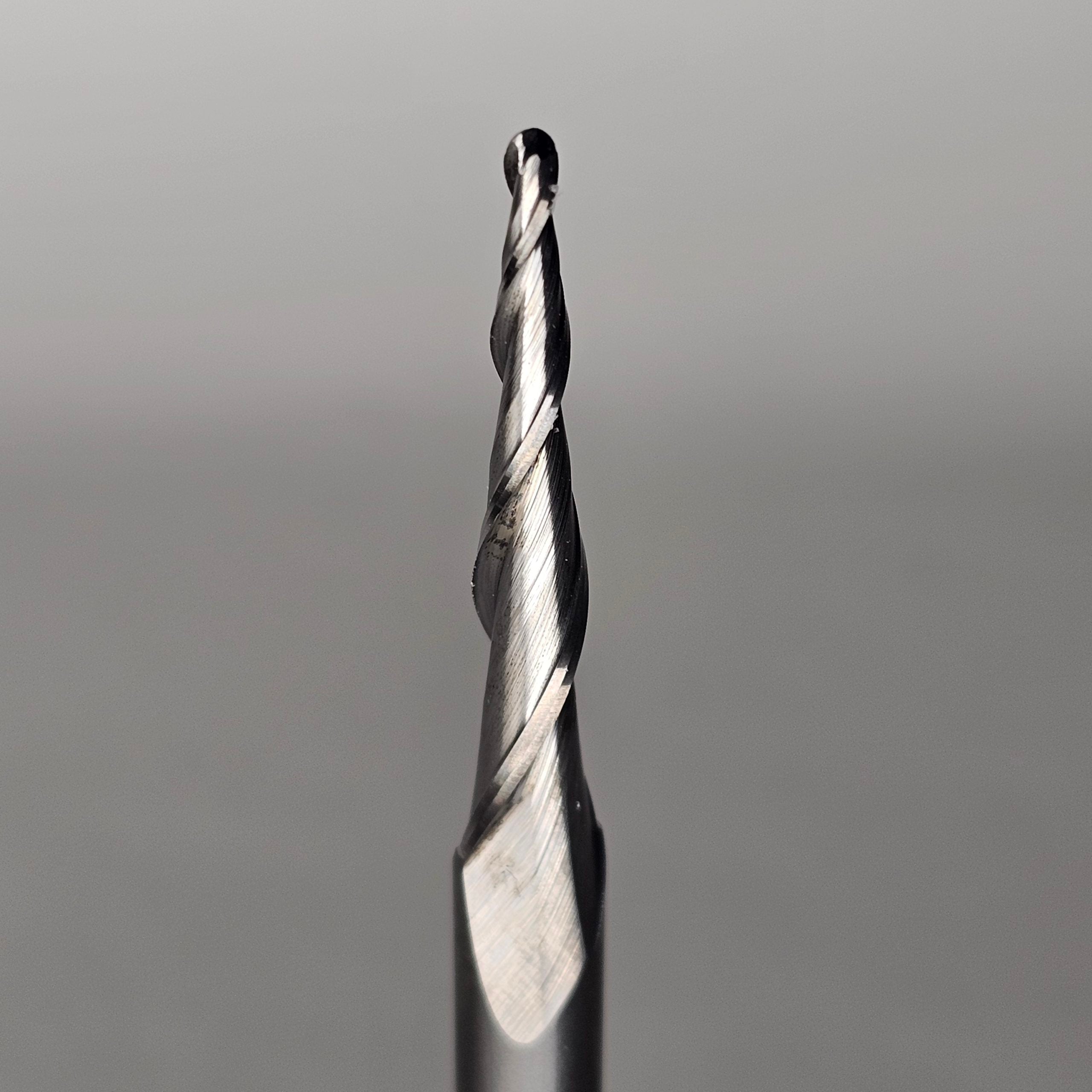

Fine Tipped Tapered Ballnose 1mm (Radius)

Name: Fine Tipped Tapered Ballnose 1mm (Radius)
Brand: CNCBits
SKU: BN-TB-14-2MM
Price: 48.50 CAD
Availability: InStock

In stock

$48.50

$48.50 $0.00

FREE SHIP OVER $250

Usually ships within 24 hrs

shank

1/4"

Cut Length

1 1/4"

Diameter

2mm

Material

Solid Carbide

flutes

2

coating

None

30-Day Guarantee

Free Ship $250+

Ships Canada

Fine-Tipped Tapered Ball Nose, 1mm Radius — Precision for 3D Detail

Standard ball nose bits can't reach fine fillets and lettering. This 1mm radius tapered tip delivers exceptional accuracy on delicate features, with minimal material removal that reduces chipping risk on intricate work.

Solid carbide construction holds its edge through the slow, precise passes fine 3D detail demands.

Specs

Tip radius: 1mm (2mm diameter)
Shank: 1/4″
Length: 3″
Cut length: 1.3″

Settings

Speed (rpm): 18,000
Feed: 100 ipm
Plunge: 80 ipm
Stepover: 7–10%

Best for 3D carving, fine fillets, and lettering work.

What is a tapered ball nose used for?

3D carving, fine fillets and lettering. The 1mm radius tip reaches detail that standard ball nose bits can't.

What speeds and feeds should I use?

Start at 18,000 rpm, 100 ipm feed, 80 ipm plunge and a 7 to 10% stepover.

Why is the stepover so small?

Fine 3D detail calls for slow, precise passes. A 7 to 10% stepover removes minimal material per pass, which also reduces chipping risk on delicate work.
