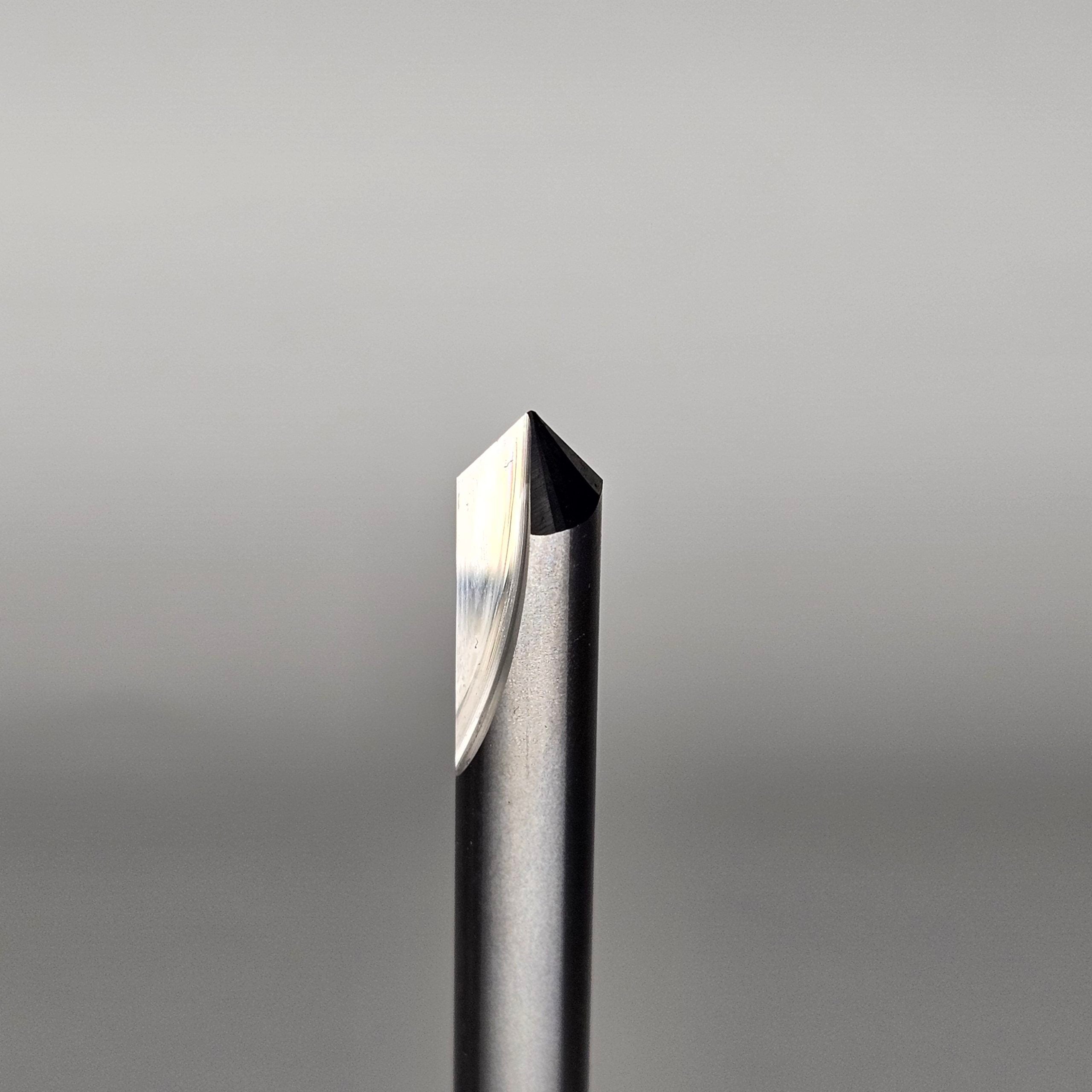

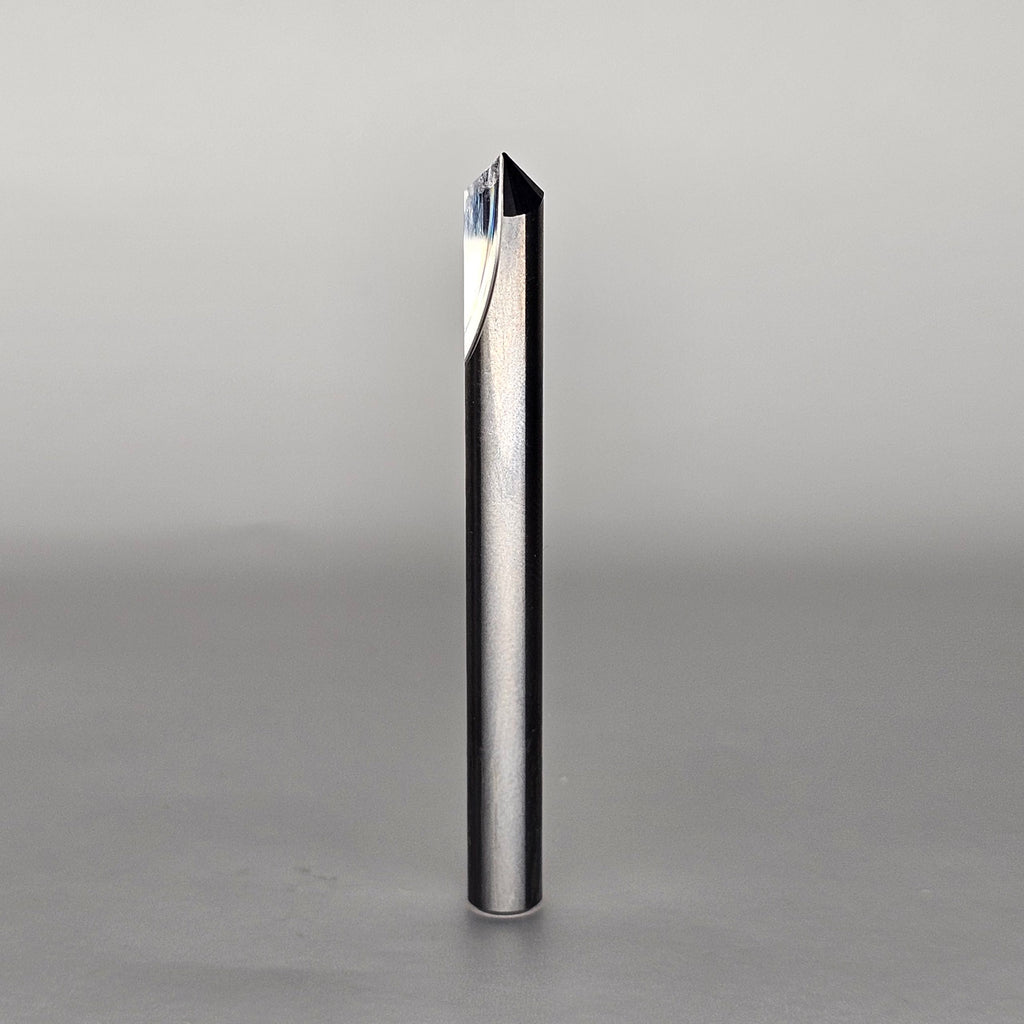

90 Degree Engraving Bit 1/4" shank
CNCBits

90 Degree Engraving Bit 1/4" shank

In stock
$32.50
$32.50 $0.00
FREE SHIP OVER $250

Usually ships within 24 hrs

shank

1/4"

Diameter

1/4"

Material

Solid Carbide

flutes

2

coating

None

30-Day Guarantee

Free Ship $250+

Ships Canada

90° Engraving V-Bit — Wide, Bold Lines for Sign Work

Fine 30-degree bits are the wrong tool when you need bold, wide-set engraving. The 90-degree angle on this bit opens up wide, shallow grooves fast — ideal for sign lettering and designs that need to read clearly from a distance.

Solid carbide construction handles wood, plastics, and soft metals, holding a clean edge through long engraving runs without smudging or uneven lines.

Specs
  • Taper angle: 90°
  • Shank: 1/4″
  • Cutting depth: 0.125″
  • Overall length: 2.0″
Settings
  • Speed (rpm): 18,000
  • Feed: 60 ipm

Best for sign making and bold engraving work.

What is a 90° engraving bit for?

Wide, bold lines for sign work. The 90° angle opens up wide, shallow grooves fast, so designs read clearly from a distance.

What speeds and feeds should I use?

Start at 18,000 rpm and a 60 ipm feed.

When should I pick 90° instead of 30° or 60°?

Choose 90° for bold lettering and wide-set engraving. Fine 30° bits are the wrong tool for that job.

What materials can I engrave?

Wood, plastics and soft metals.

What are its dimensions?

1/4″ shank, 0.125″ cutting depth and 2.0″ overall length, in solid carbide.
