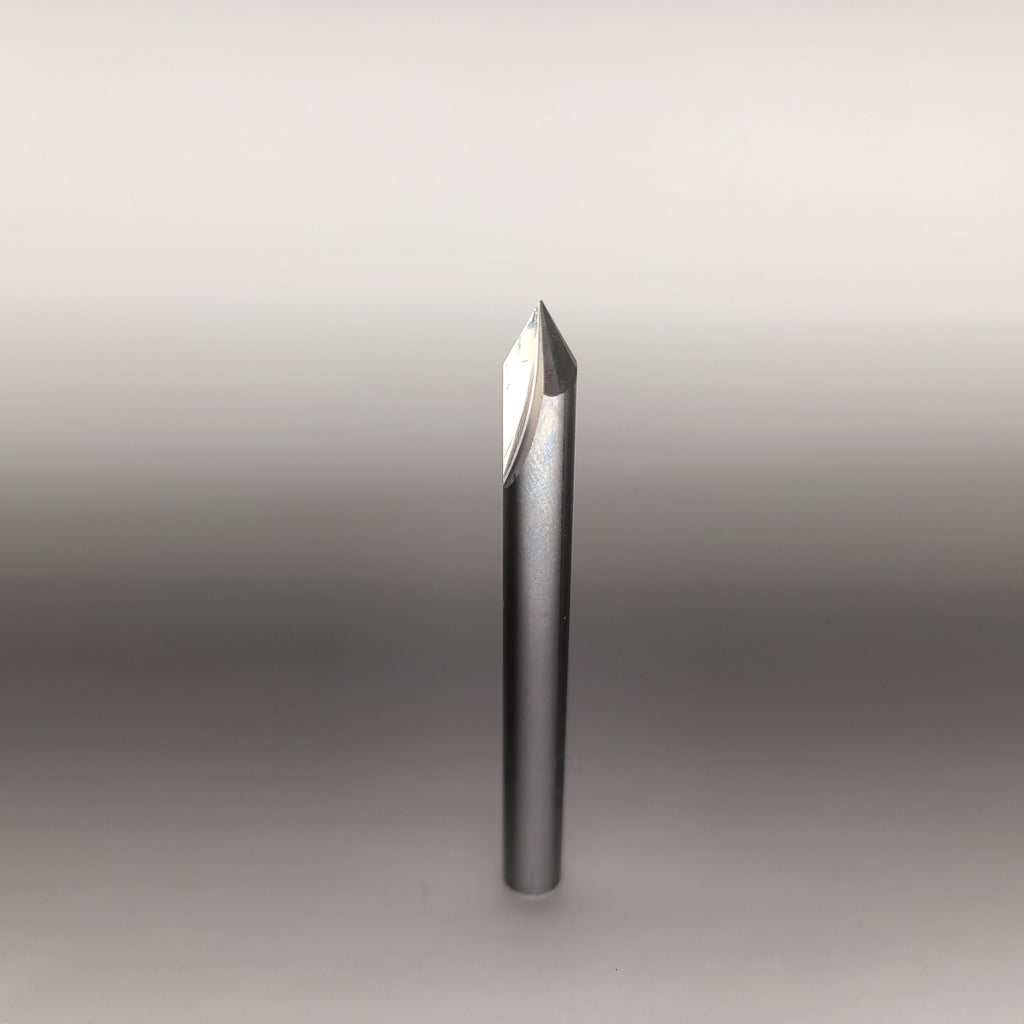

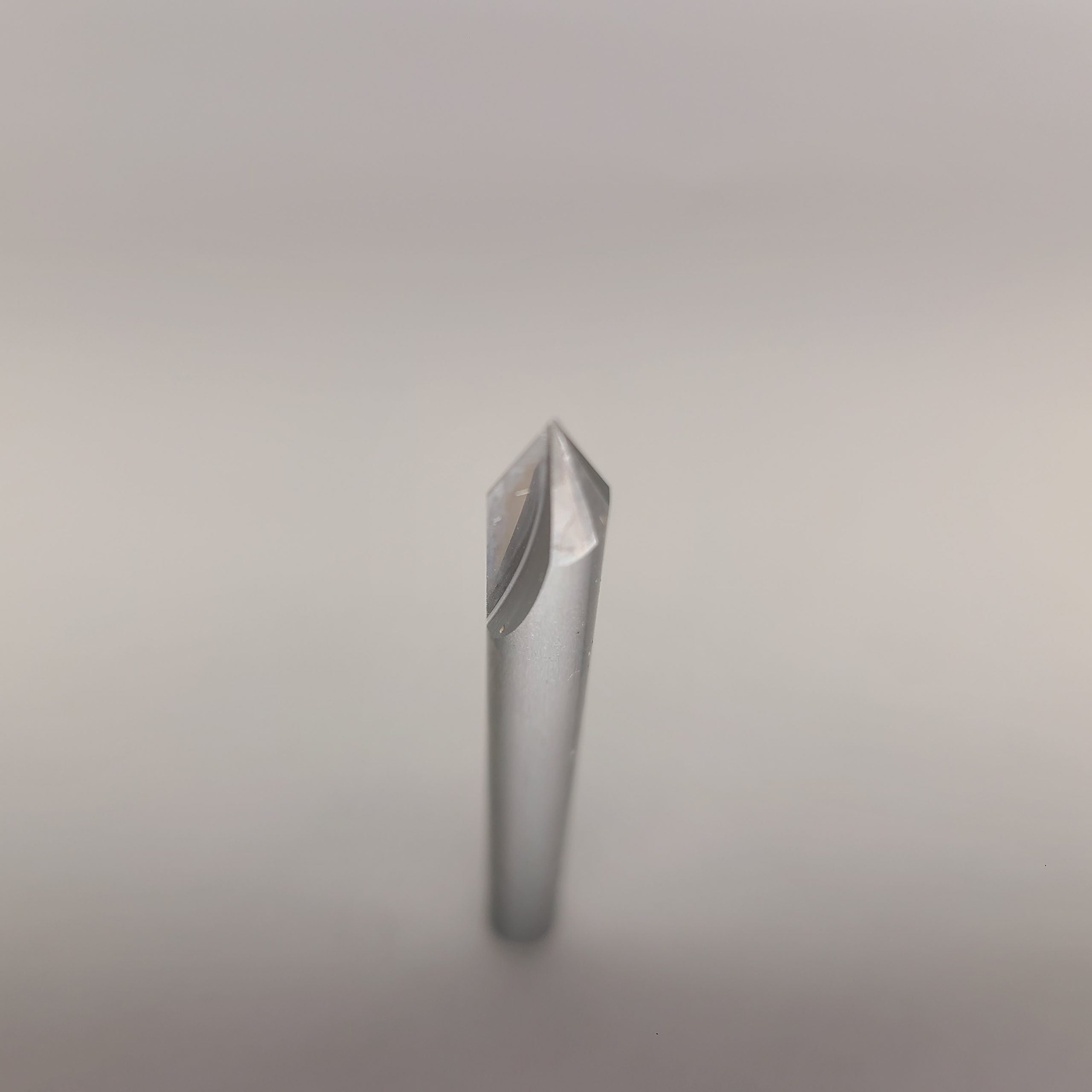

60 Degree Engraving Bit 1/4" shank

Name: 60 Degree Engraving Bit 1/4" shank
Brand: CNCBits
SKU: EN-ST-14-30
Price: 37.50 CAD
Availability: InStock

In stock

$37.50

FREE SHIP OVER $250

Usually ships within 24 hrs

shank

1/4"

Diameter

1/4"

Material

Solid Carbide

flutes

2

coating

None

30-Day Guarantee

Free Ship $250+

Ships Canada

60° Engraving V-Bit — The Middle Ground for Sign Work

Too fine and you lose visibility; too wide and you lose detail. The 60-degree angle on this engraving bit hits the sweet spot for sign lettering that needs to be both legible and detailed, on wood, acrylic, and metal.

Solid carbide construction holds a sharp point through long engraving runs.

Specs

Taper angle: 60°
Shank: 1/4″
Cutting depth: 0.225″
Overall length: 2.5″

Settings

Speed (rpm): 18,000
Feed: 60 ipm

Best for sign making and general engraving work.

What is a 60° engraving bit for?

Sign lettering that needs to be both legible and detailed, on wood, acrylic and metal.

What speeds and feeds should I use?

Start at 18,000 rpm and a 60 ipm feed.

Should I choose 30°, 60° or 90°?

60° is the middle ground. Go 30° for the finest detail and 90° for bold, wide lines.

What are its dimensions?

1/4″ shank, 0.225″ cutting depth and 2.5″ overall length, in 2-flute solid carbide.

What collet size does it need?

A 1/4″ collet.
