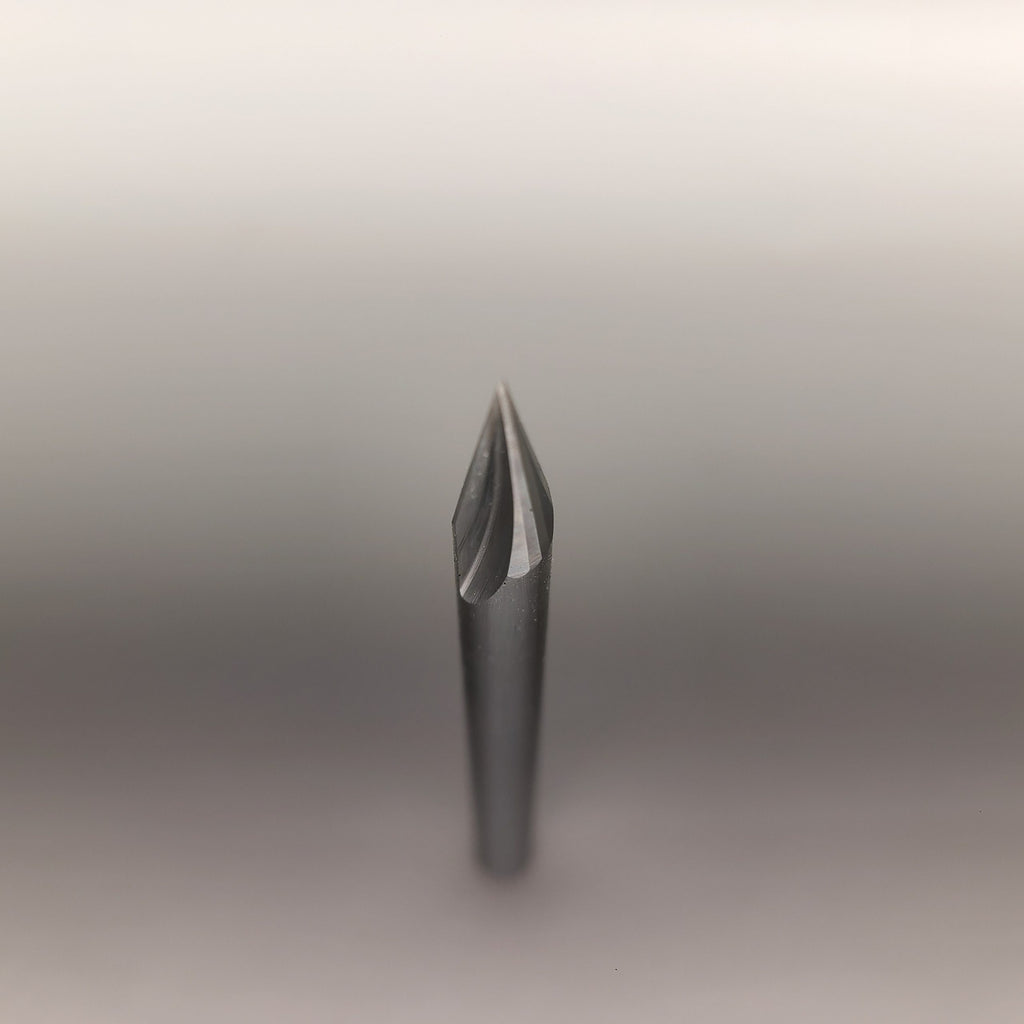

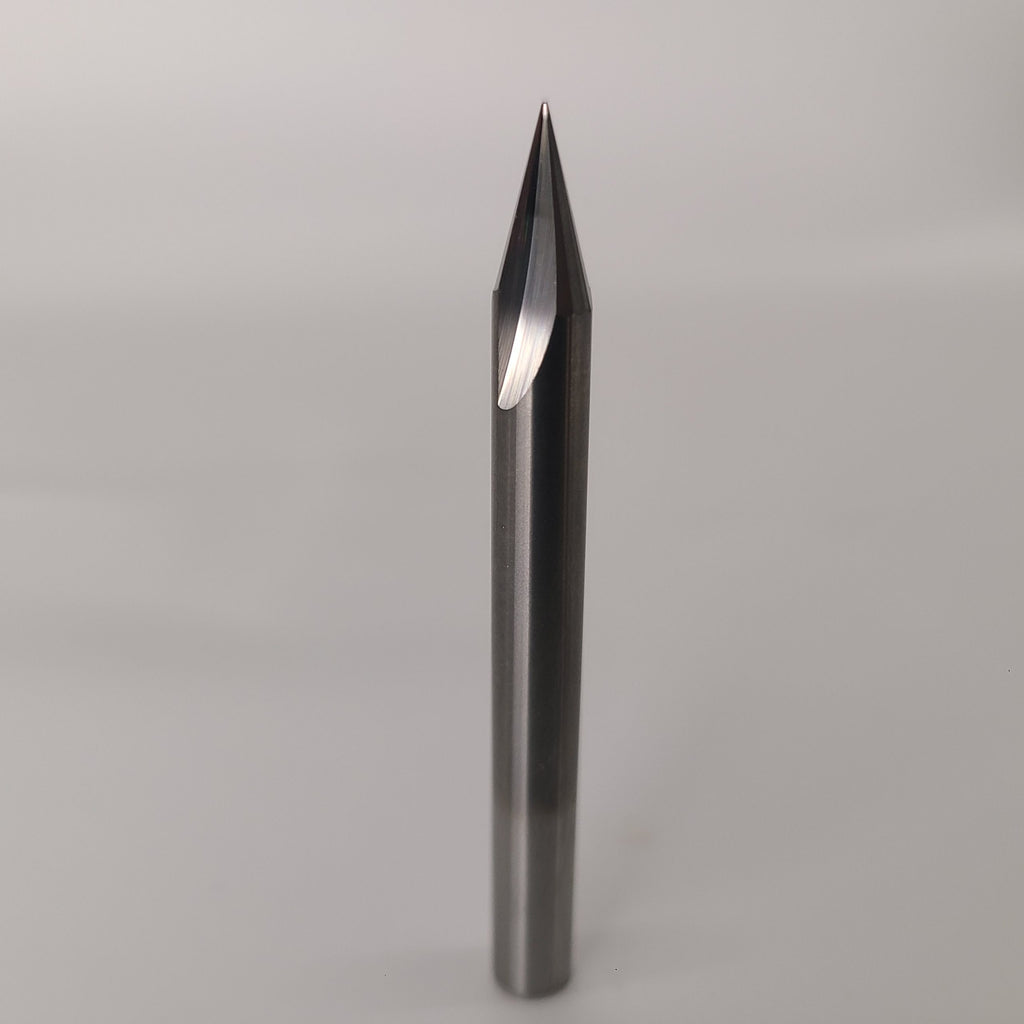

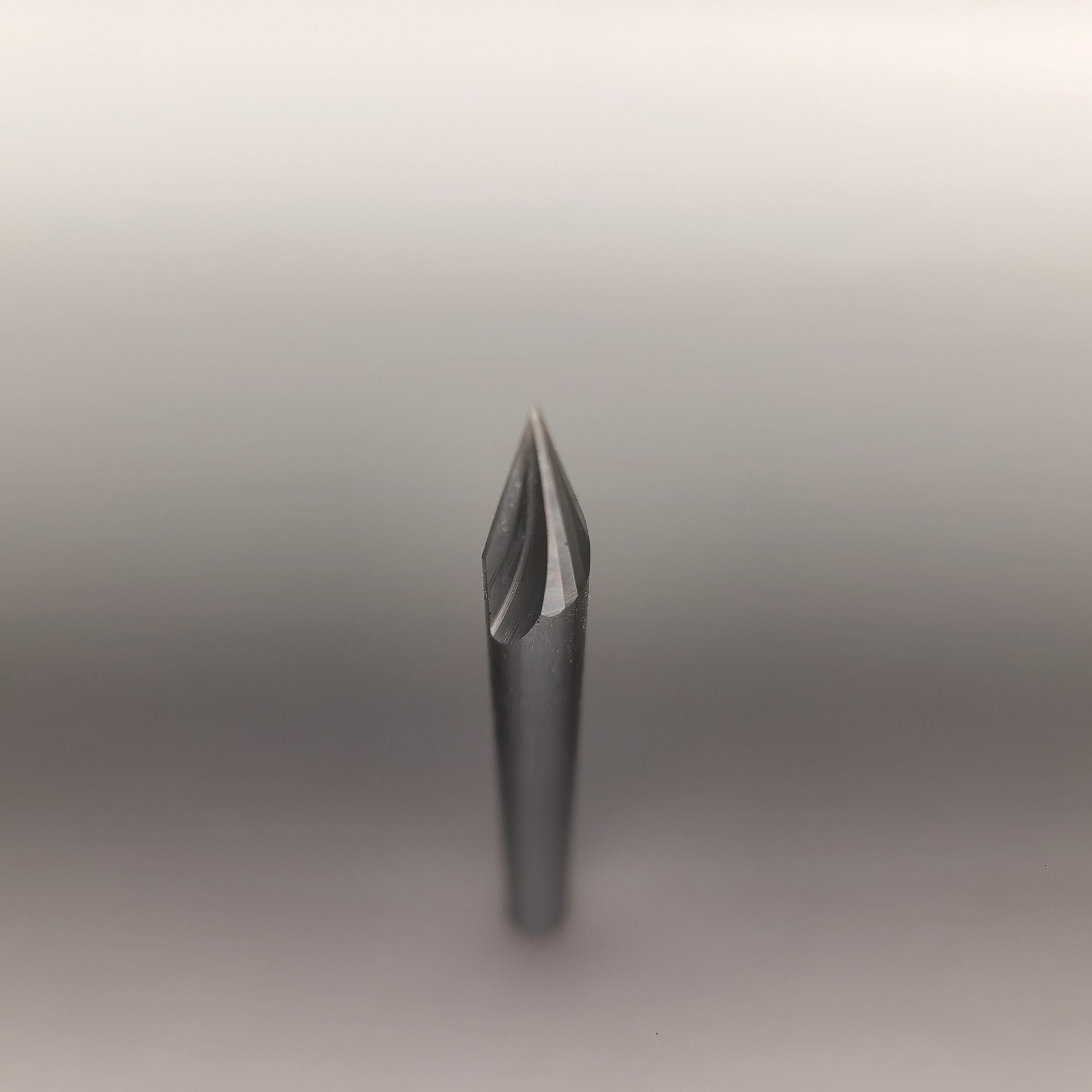

30 Degree Engraving Bit 1/4" shank
CNCBits

30 Degree Engraving Bit 1/4" shank

In stock
$40.50
$40.50
FREE SHIP OVER $250

Usually ships within 24 hrs

shank

1/4"

Diameter

1/4"

Material

Solid Carbide

flutes

2

coating

None

30-Day Guarantee

Free Ship $250+

Ships Canada

30° Engraving V-Bit — Sharp, Fine Lettering Without the Wobble

Wide V-bits blow out fine lettering and thin lines. The 30-degree angle on this engraving bit is built specifically for tight, detailed work — sign lettering, logos, and fine-line engraving on wood, plastic, and soft metals.

Solid carbide construction with 2 flutes keeps the point sharp through long engraving runs, so your lines stay crisp from the first letter to the last.

Specs
  • Taper angle: 30°
  • Shank: 1/4″
  • Cutting depth: 0.45″
  • Overall length: 2.4″
Settings
  • Speed (rpm): 18,000
  • Feed: 60 ipm

Best for fine detail engraving, lettering, and sign making.

What is a 30° engraving bit for?

Tight, detailed work like sign lettering, logos and fine-line engraving. The narrow 30° angle holds detail that wider V-bits blow out.

What speeds and feeds should I use?

Start at 18,000 rpm and a 60 ipm feed.

Should I use a 30°, 60° or 90° V-bit?

Use 30° for fine lettering and thin lines, 60° as the middle ground between detail and legibility, and 90° for bold, wide lines.

What materials can I engrave?

Wood, plastic and soft metals.

What are its dimensions?

1/4″ shank, 0.45″ cutting depth and 2.4″ overall length, in 2-flute solid carbide.
