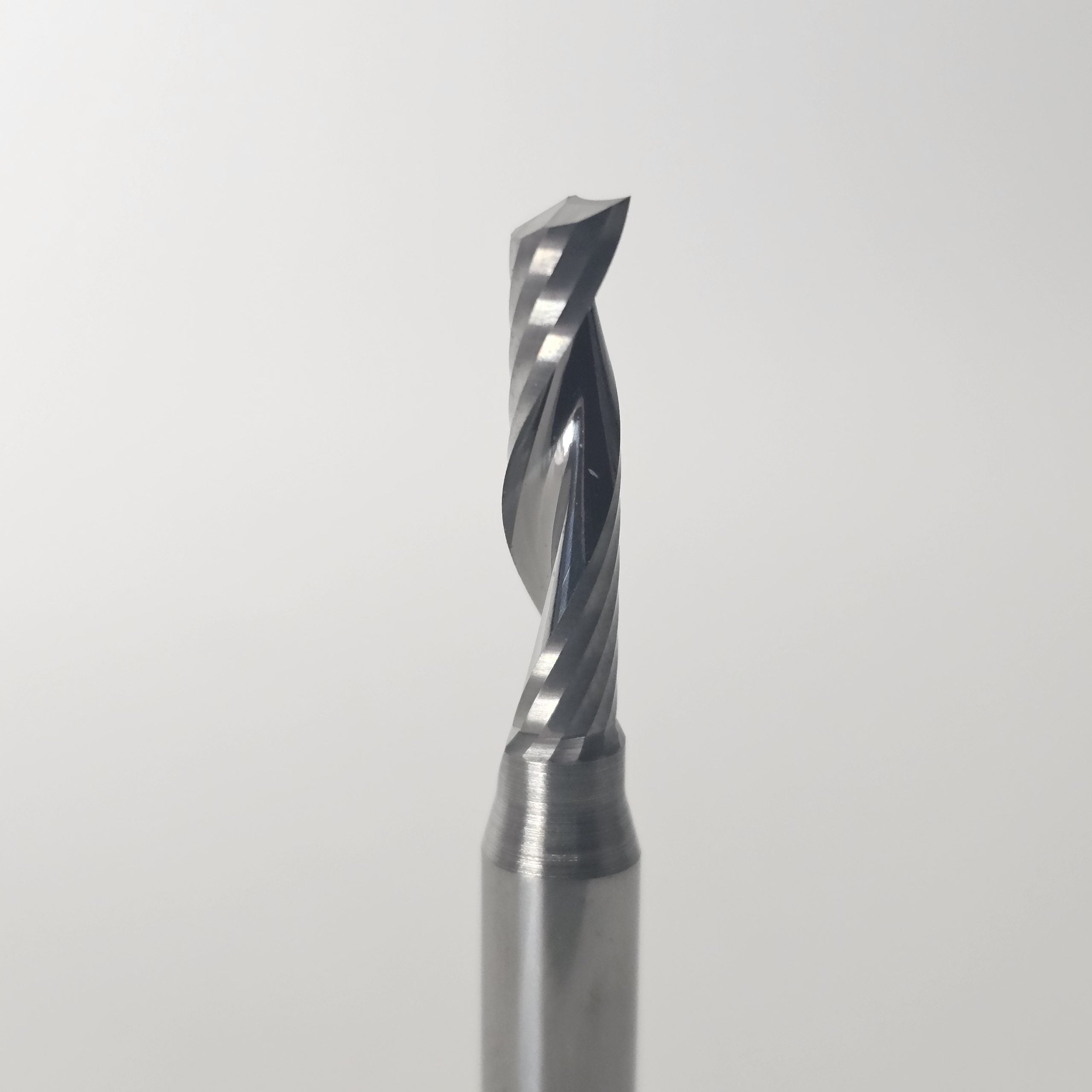

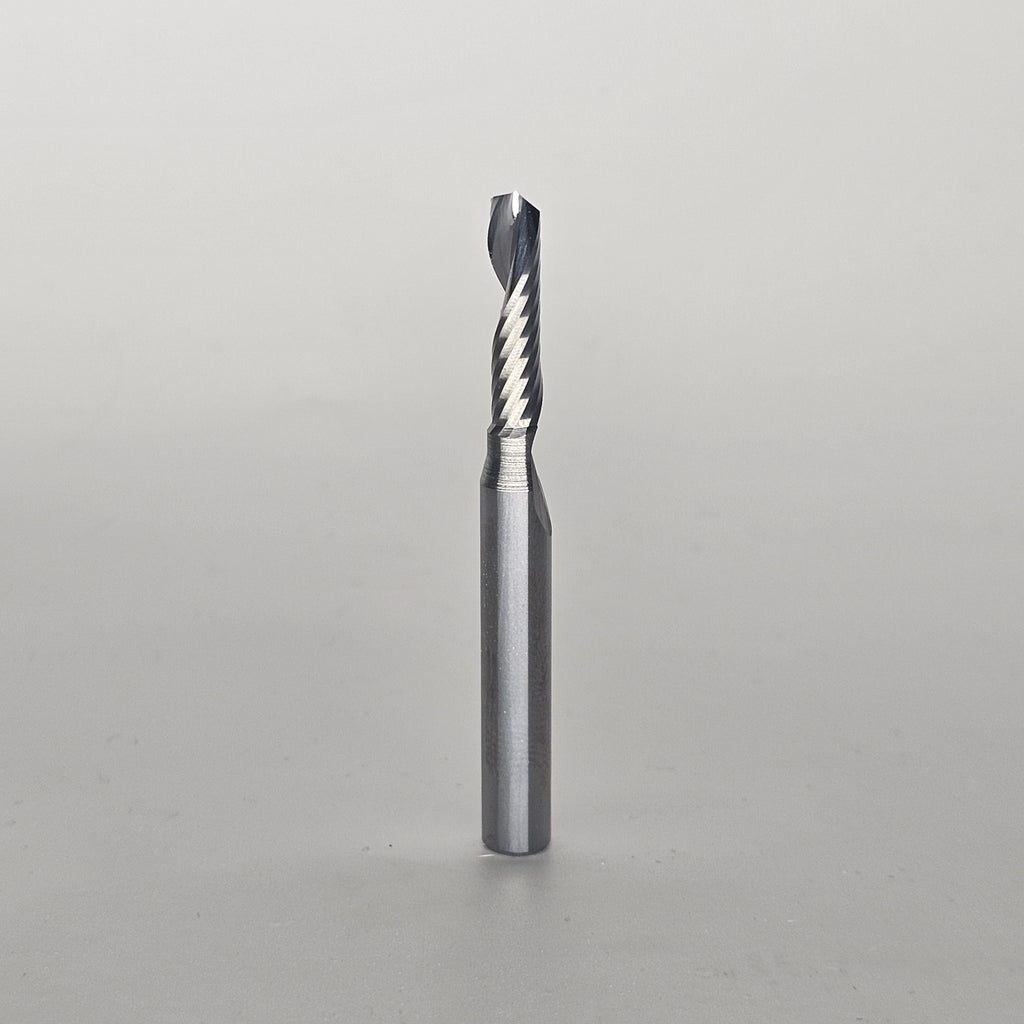

3/16" Single "O" Flute

Name: 3/16" Single "O" Flute
Brand: CNCBits
SKU: OF-ST-14-316
Price: 40.50 CAD
Availability: InStock

In stock

$40.50

FREE SHIP OVER $250

Usually ships within 24 hrs

shank

1/4"

Cut Length

3/4"

Diameter

3/16"

Material

Solid Carbide

flutes

1

coating

None

30-Day Guarantee

Free Ship $250+

Ships Canada

3/16" O-Flute Upcut Bit — Clean Cuts in Plastics, No Melting

Standard bits melt or gum up when they hit plastic. This 3/16" O-flute upcut bit's single-flute geometry clears chips fast and pulls them up and out, cutting clean through plastics, soft metals, and composites without heat buildup.

Solid carbide construction and a shear cutting action keep material from building up on the edge, staying long enough for deep cuts but short enough to stay rigid on delicate work.

Specs

Cut diameter: 3/16″
Shank: 1/4″
Length: 2.3″
Cut length: 3/4″
Material: 100% carbide

Settings

Speed (rpm): 18,000
Feed: 90 ipm
Plunge: 40 ipm

Best for plastics and other non-ferrous materials.

What is a 3/16″ O-flute bit used for?

Plastics, soft metals and composites. The single-flute geometry clears chips fast and pulls them up and out, so there's no heat buildup or melting.

What speeds and feeds should I use?

Start at 18,000 rpm, 90 ipm feed and 40 ipm plunge.

What materials can I cut?

Plastics and other non-ferrous materials, including soft metals and composites.

Is it rigid enough for deep cuts?

It's long enough for deep cuts but short enough to stay rigid on delicate work.

What are its dimensions?

3/16″ cutting diameter on a 1/4″ shank, 3/4″ cut length and 2.3″ overall length, in 100% carbide.
