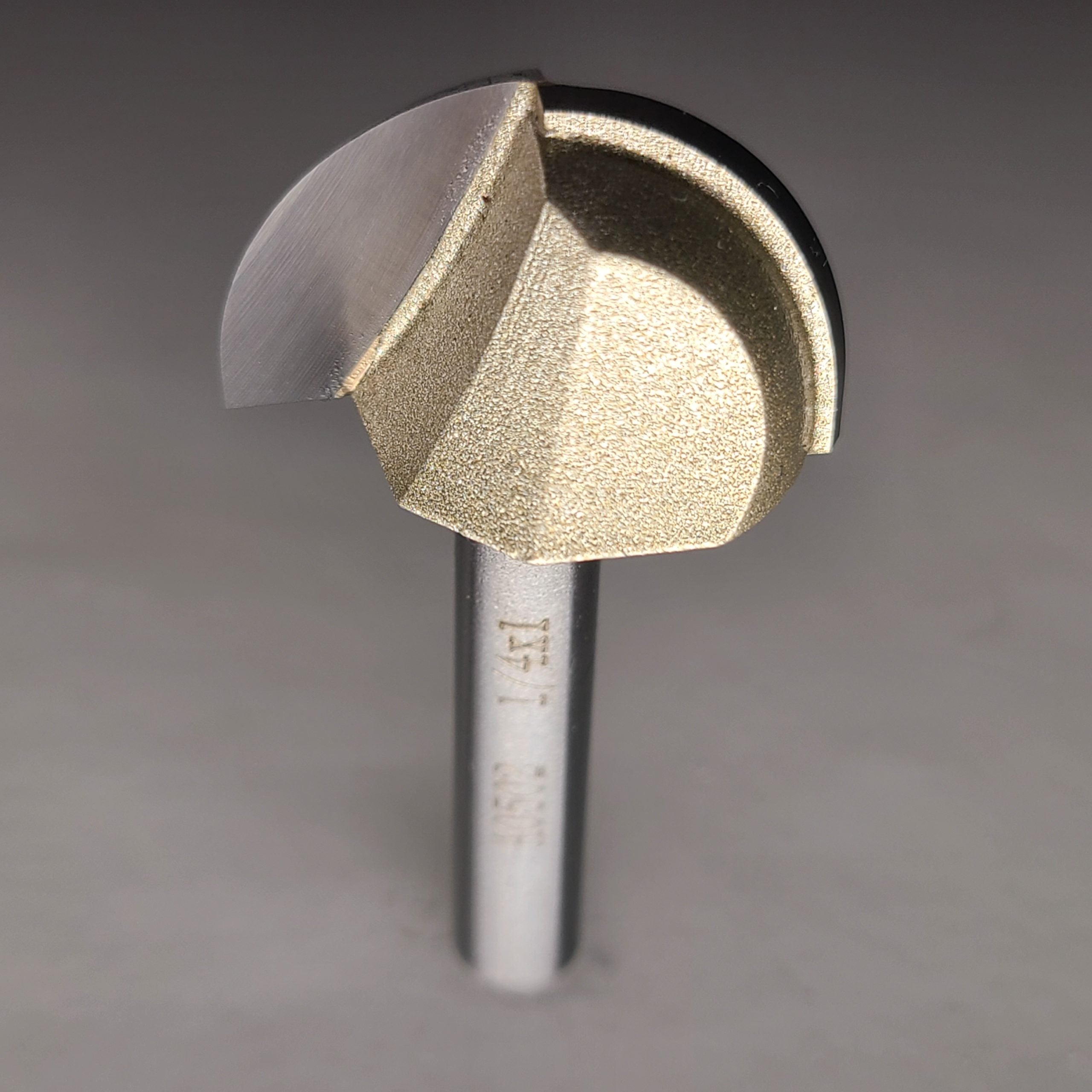

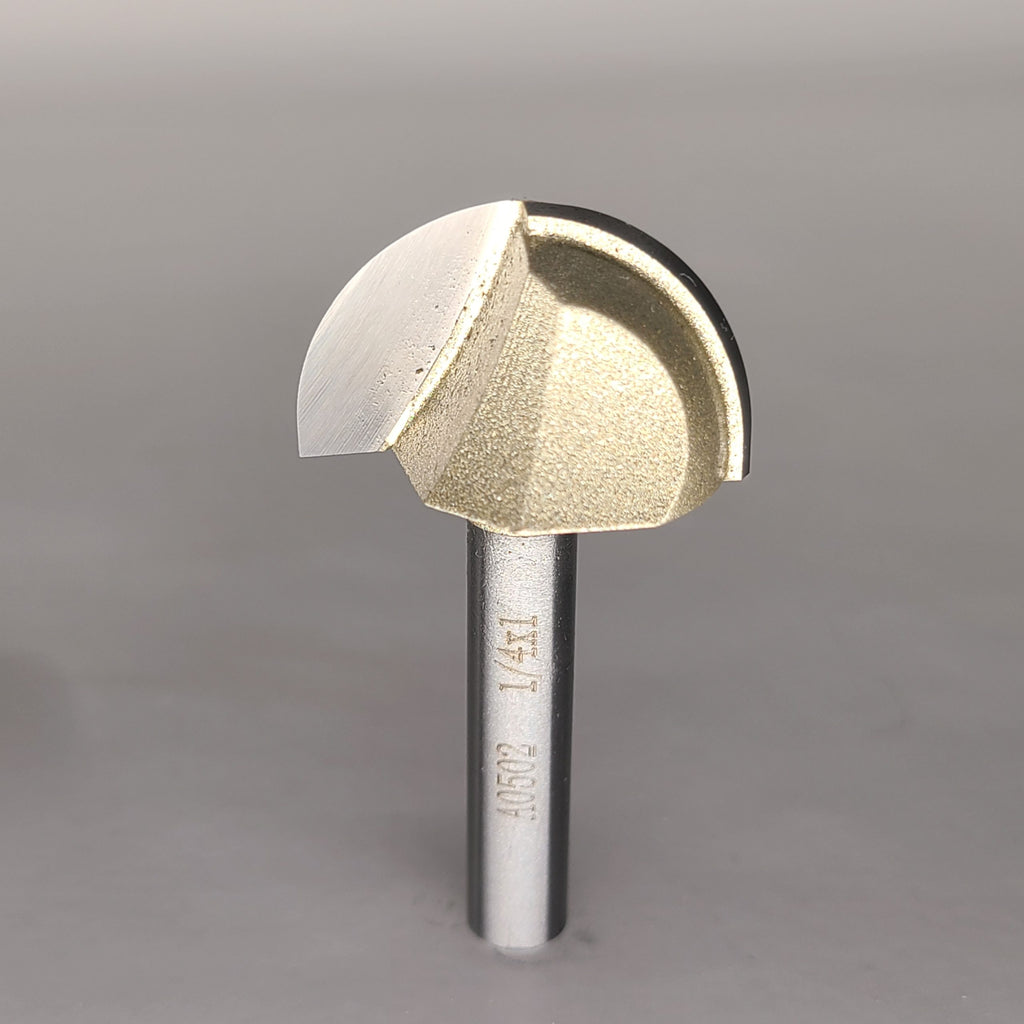

1" Ball nose with 1/4" Shank
CNCBits

1" Ball nose with 1/4" Shank

In stock
$48.50
$48.50
FREE SHIP OVER $250

Usually ships within 24 hrs

shank

1/4"

Cut Length

1"

Diameter

1"

Material

Carbide Tipped

flutes

2

coating

None

30-Day Guarantee

Free Ship $250+

Ships Canada

1" Ball Nose Bit — Big Radius for Textured Surfaces and Large Patterns

This 1" boxcore ball nose is built for scale — eye-catching textured surfaces or a simple, clean large-radius pattern outline, done fast without switching to multiple smaller bits.

Solid carbide construction resists chipping and wear even under heavy, sustained cutting.

Specs
  • Cut diameter: 1″
  • Shank: 1/4″
  • Length: 1.75″
  • Cut length: 0.6″
Settings
  • Speed (rpm): 18,000
  • Feed: 60 ipm
  • Plunge: 40 ipm

Best for large textured surfaces, curved patterns, and 3D models.

What is a 1″ ball nose bit used for?

Large textured surfaces, curved patterns and 3D models. It's a boxcore ball nose built for scale, so big-radius work gets done without switching between smaller bits.

What speeds and feeds should I use?

Start at 18,000 rpm, 60 ipm feed and 40 ipm plunge.

Do I need smaller bits for big-radius patterns?

No. This bit handles large textured surfaces or a clean large-radius pattern outline fast, without switching between multiple smaller bits.

How does it stand up to heavy cutting?

Solid carbide construction resists chipping and wear under heavy, sustained cutting.

What are its dimensions?

1″ cutting diameter on a 1/4″ shank, 0.6″ cut length and 1.75″ overall length.
