1/8" Ball Nose
CNCBits

1/8" Ball Nose

In stock
$26.50
$26.50
FREE SHIP OVER $250

Usually ships within 24 hrs

shank

1/8"

Cut Length

3/4"

Diameter

1/8"

Material

Solid Carbide

flutes

2

coating

None

30-Day Guarantee

Free Ship $250+

Ships Canada

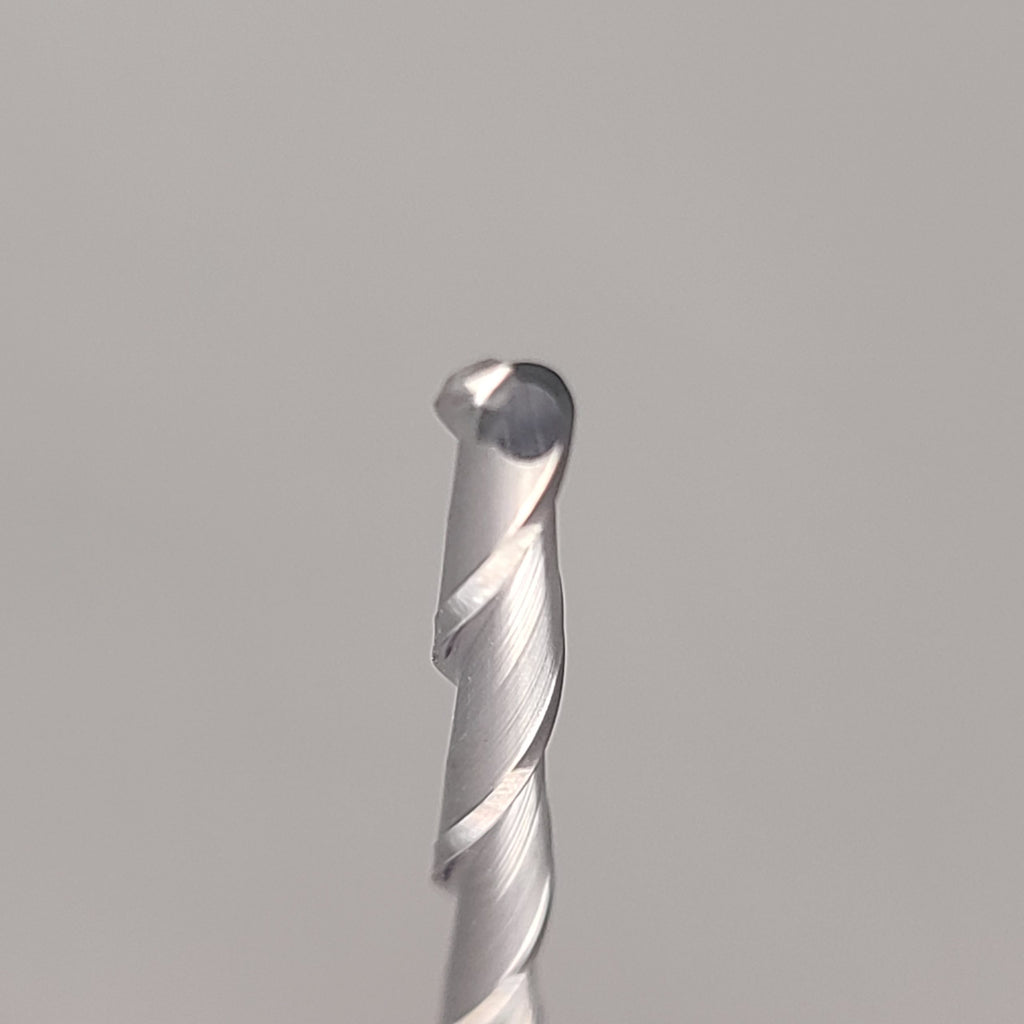

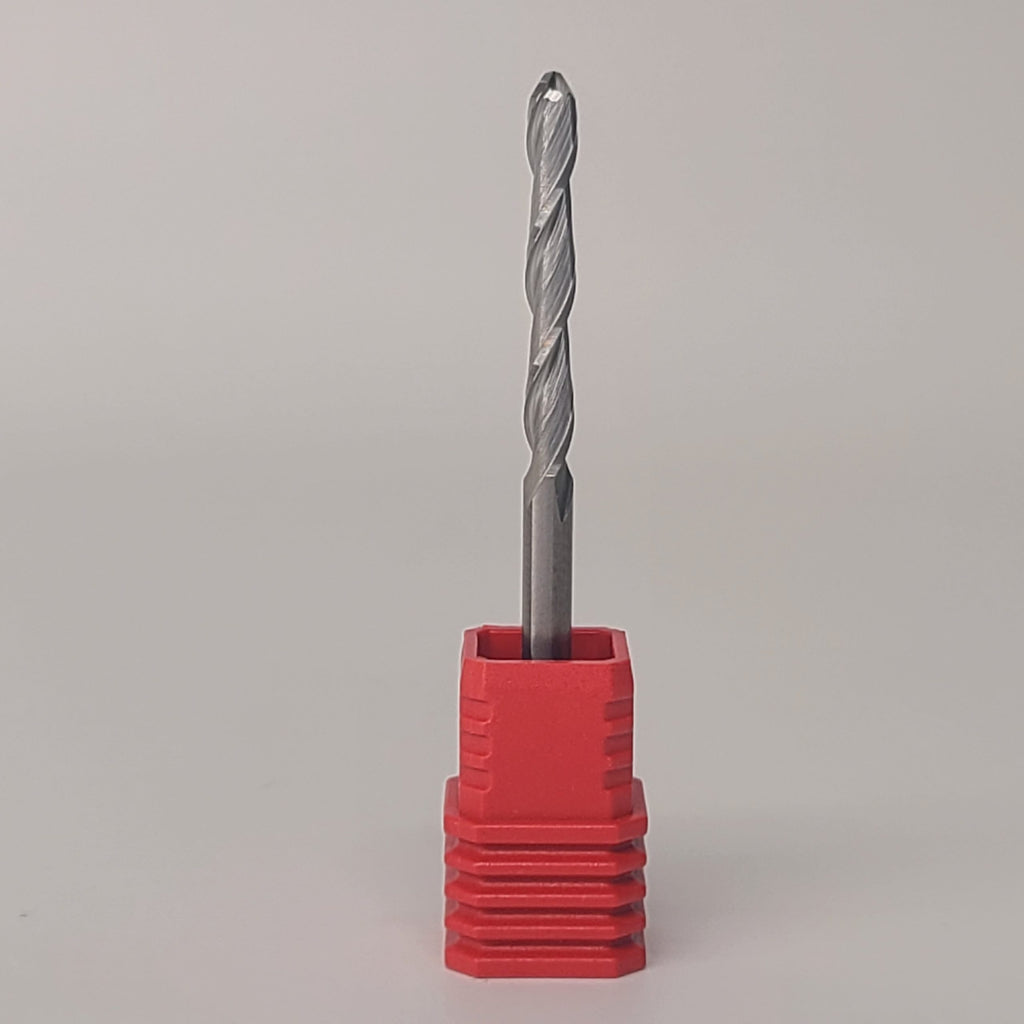

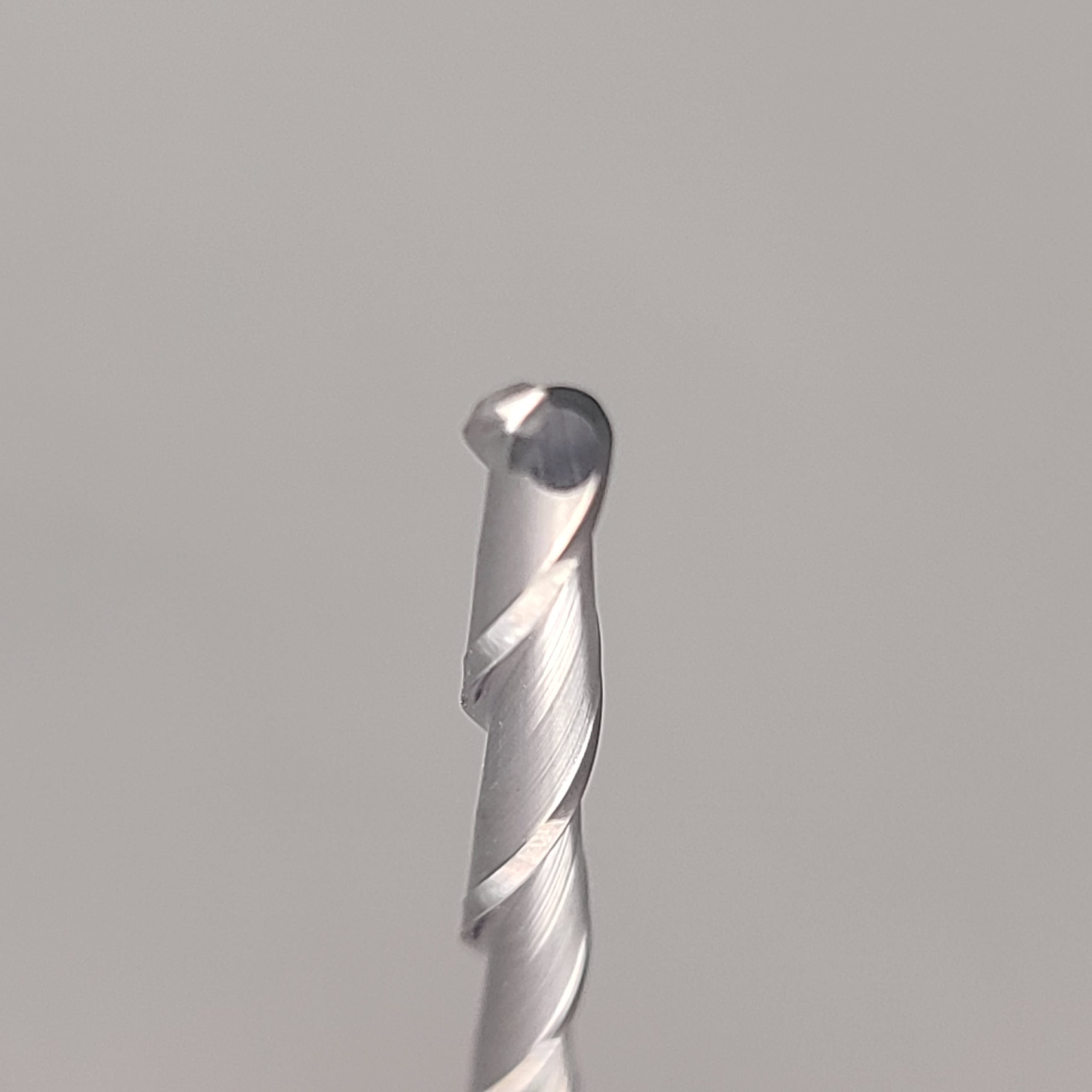

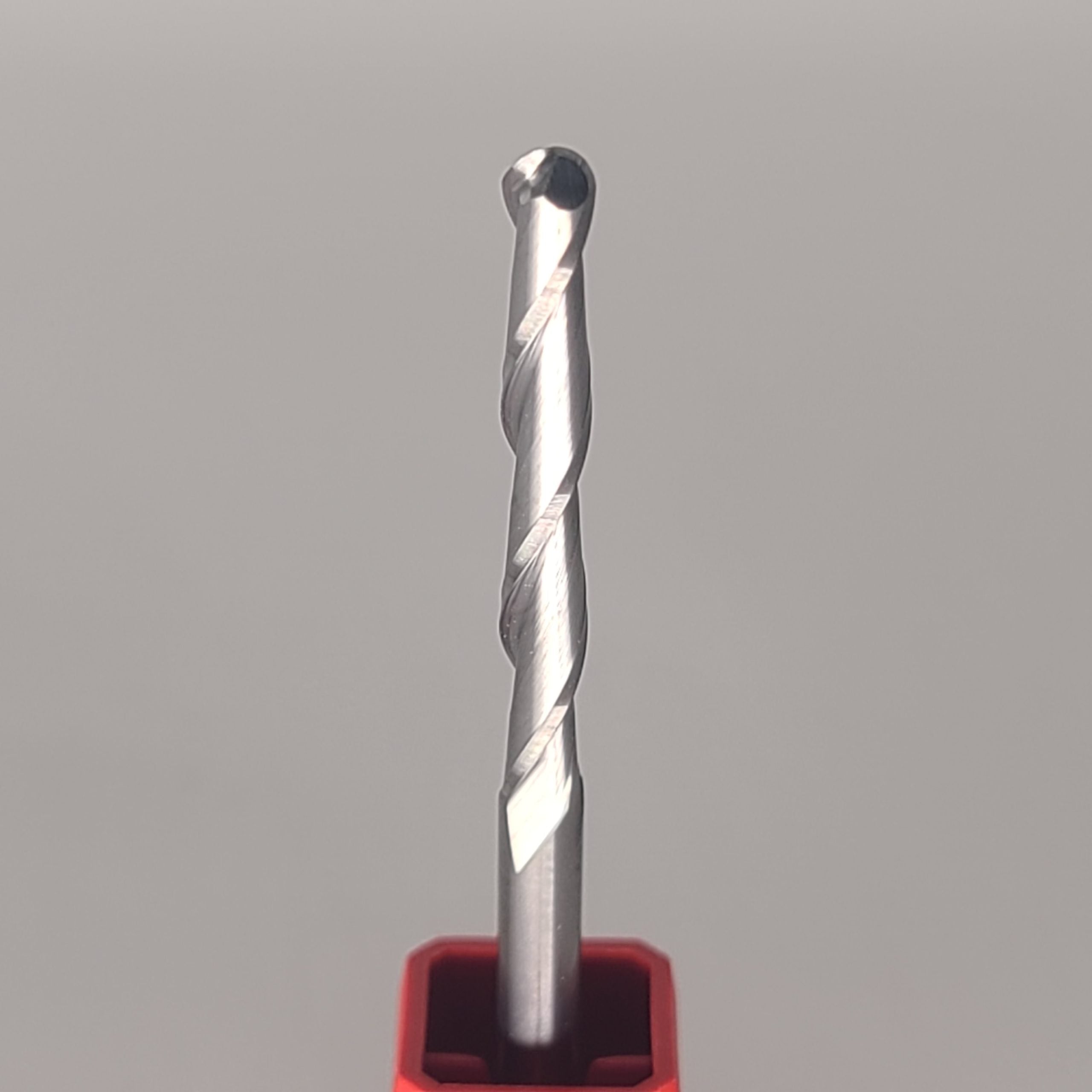

1/8" Ball Nose Bit — Sculpted Detail Without the Tool Marks

Flat-end bits leave sharp facets on curved surfaces that need hand-sanding to blend. The 1/8" Ball Nose Bit's rounded tip glides through the material, producing smooth, flowing contours right off the machine.

Its small size makes it the right call for fine detail on 3D carving, sign lettering, and any curved profile where a bigger radius would blow past the detail.

Specs
  • Cut diameter: 1/8″
  • Shank: 1/8″
  • Length: 2″
  • Cut length: 3/4″
Settings
  • Speed (rpm): 18,000
  • Feed: 40 ipm
  • Plunge: 30 ipm

Results vary by material and machine rigidity — treat these as your starting point.

When should I use a 1/8″ ball nose?

When fine detail matters: 3D carving, sign lettering and curved profiles where a bigger radius would blow past the detail.

What speeds and feeds should I use?

Start at 18,000 rpm, 40 ipm feed and 30 ipm plunge. Adjust for your material and machine.

Will it leave tool marks?

The rounded tip produces smooth, flowing contours right off the machine, without the sharp facets a flat-end bit leaves on curved surfaces.

What collet size does it need?

A 1/8″ collet. Cutting diameter and shank are both 1/8″.

What are its dimensions?

2″ overall length with a 3/4″ cut length.
