1/4" Ball Nose
Usually ships within 24 hrs
1/4"
1 1/4"
1/4"
Solid Carbide
2
None
30-Day Guarantee
Free Ship $250+
Ships Canada

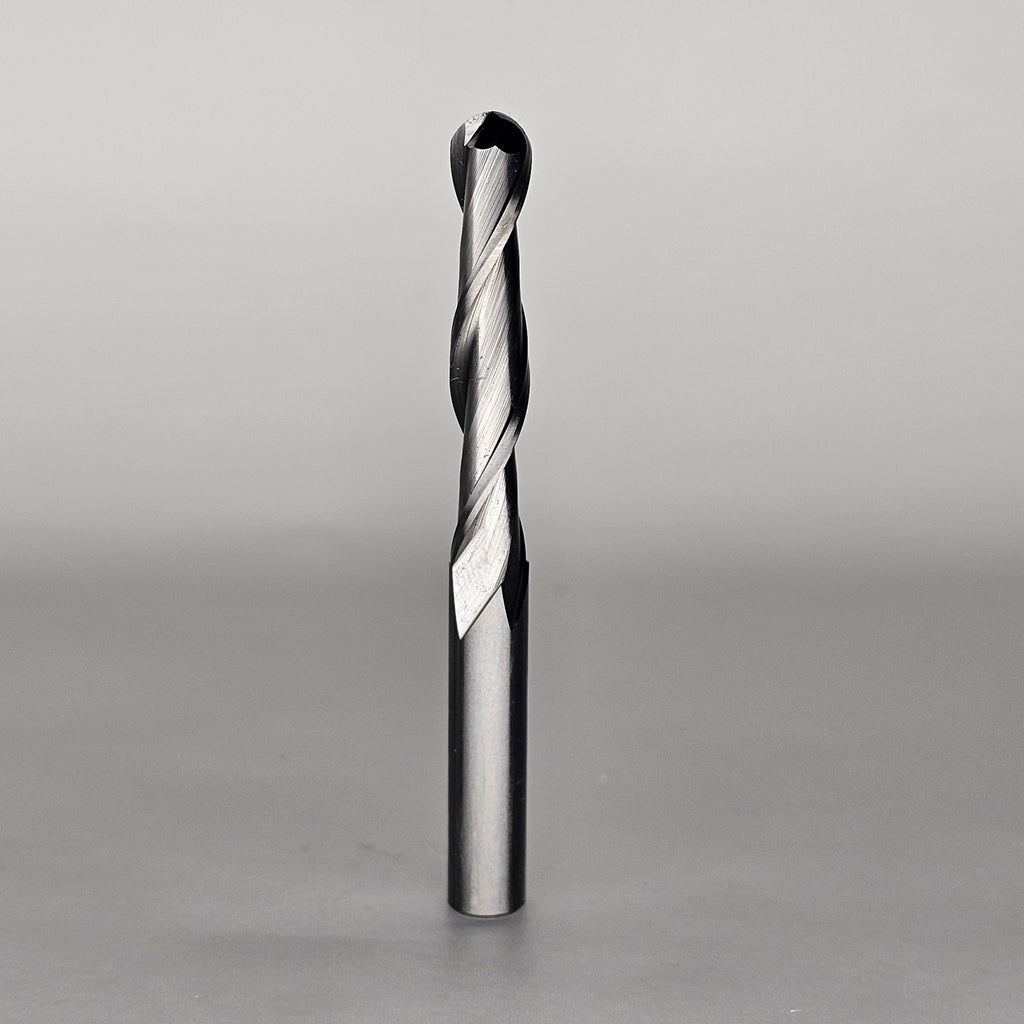

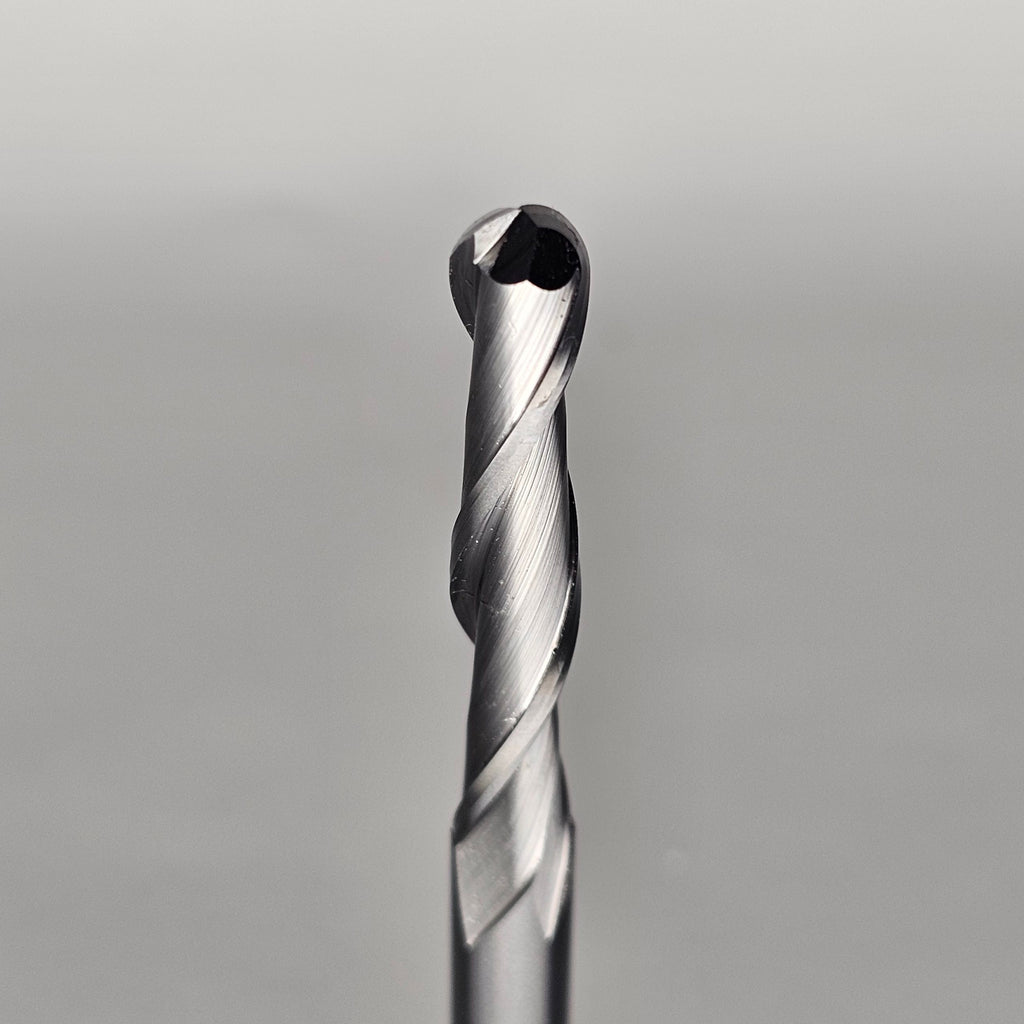

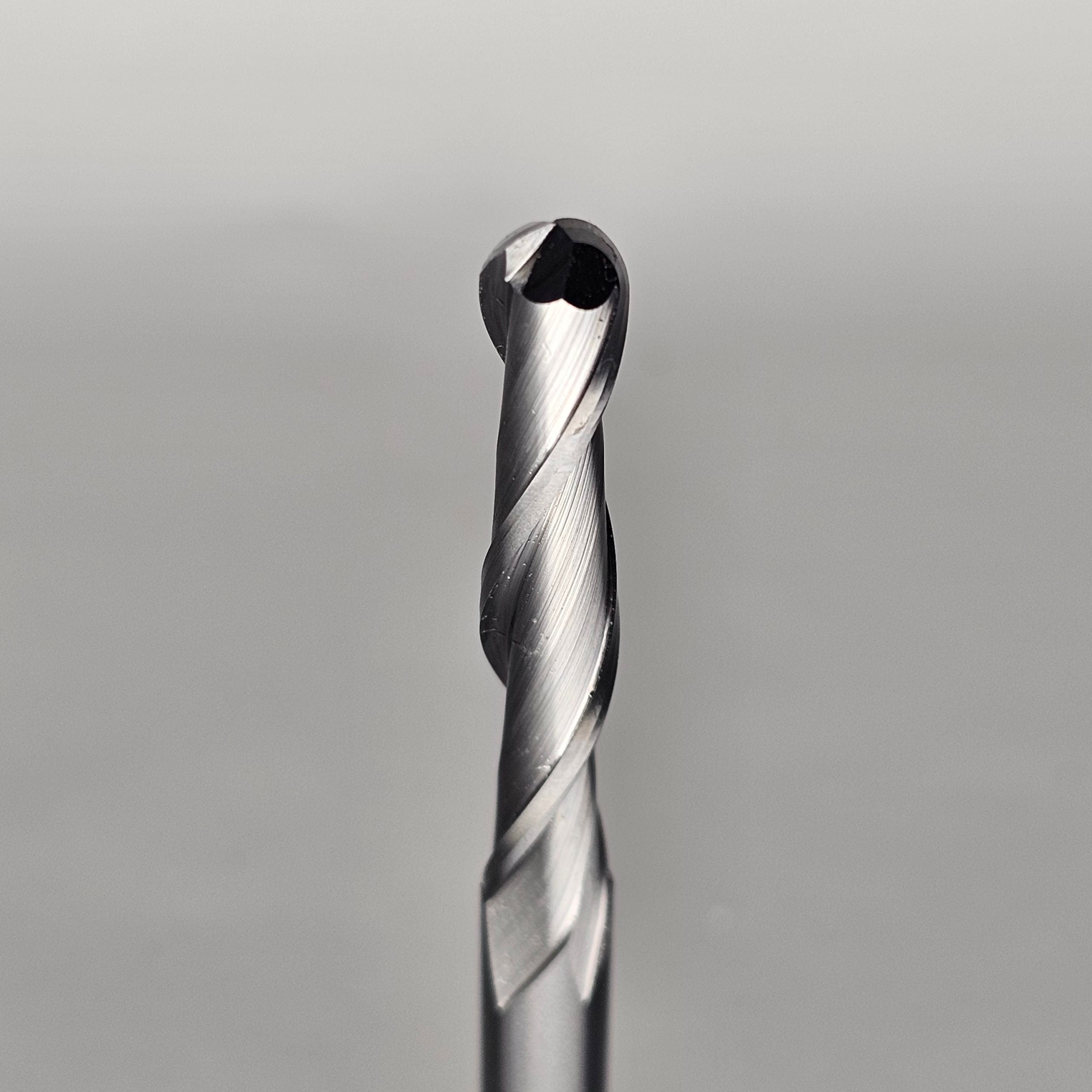

The 1/4" Ball Nose CNC Bit
The 1/4" Ball Nose is a precision router bit designed for 3D carving, contouring, and detailed profile work. Its rounded cutting tip glides smoothly through the material, producing soft, flowing surfaces without the sharp tool marks a flat-end bit would leave behind.
Suitable for both hobby and industrial CNC routers, this bit is a go-to choice for projects where a smooth, sculpted finish matters more than sharp corners — from relief carvings to decorative edge profiles.
Key Features
- Ball nose geometry for smooth, consistent contours
- Rounded tip reduces surface marks and chipping
- Delivers fine detail on 3D carvings and reliefs
- Durable construction holds an edge through repeated passes
- Designed for hobby and industrial CNC machines
Best Used For
- 3D carving and relief work
- Sign making
- Decorative contouring and edge profiles
- Wood
- Plastics
- Soft metals
Specifications
- Cutting Diameter: 0.250″
- Shank: 1/4″
- Overall Length: 2.5″
- Cut Length: 1.25″
Recommended Settings
- RPM: 18,000
- Feed: 80 IPM
- Plunge: 50 IPM
Please note results will vary depending on material type and machine rigidity. These numbers are meant to be a starting point and may need to be adjusted to obtain maximum efficiency for your particular setup.
