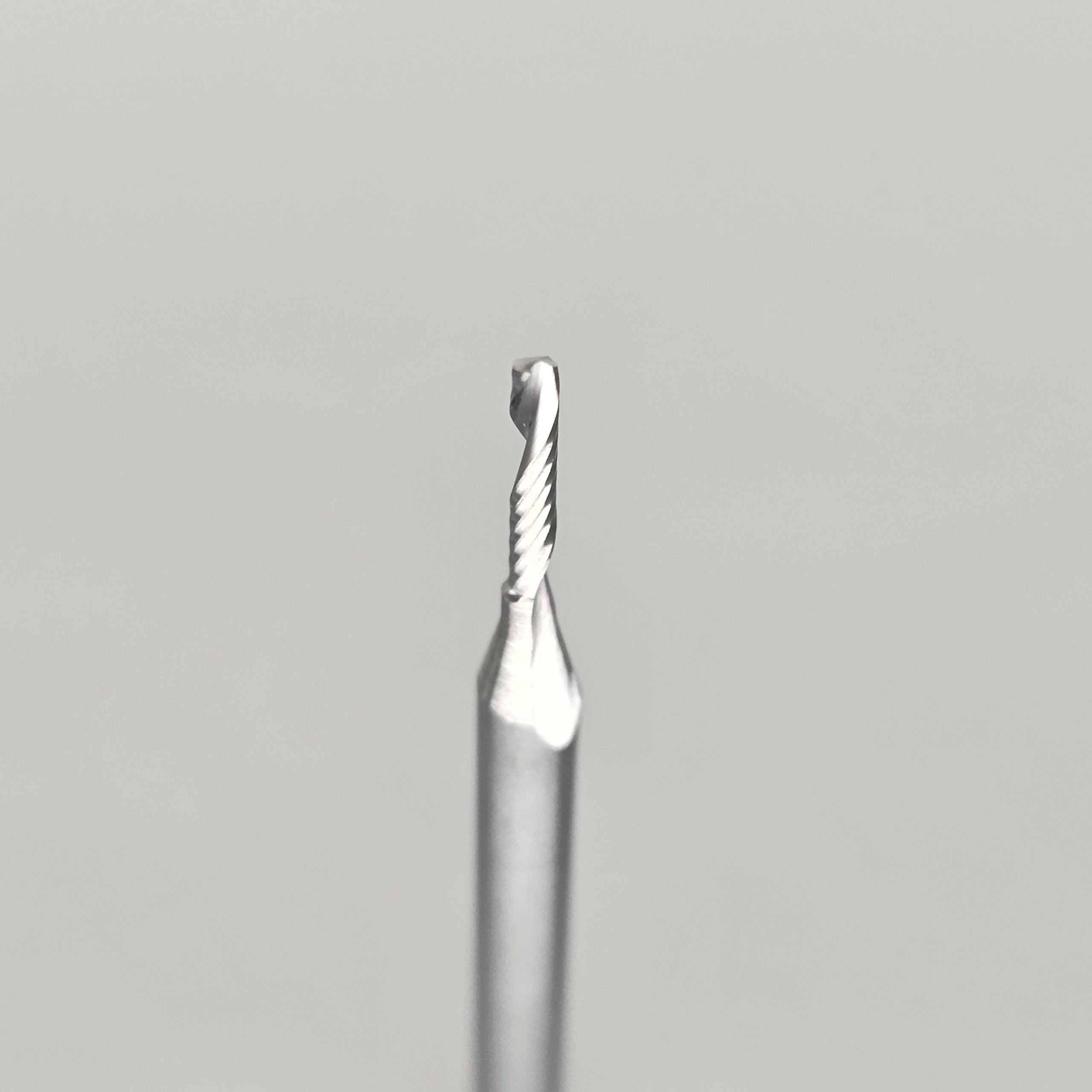

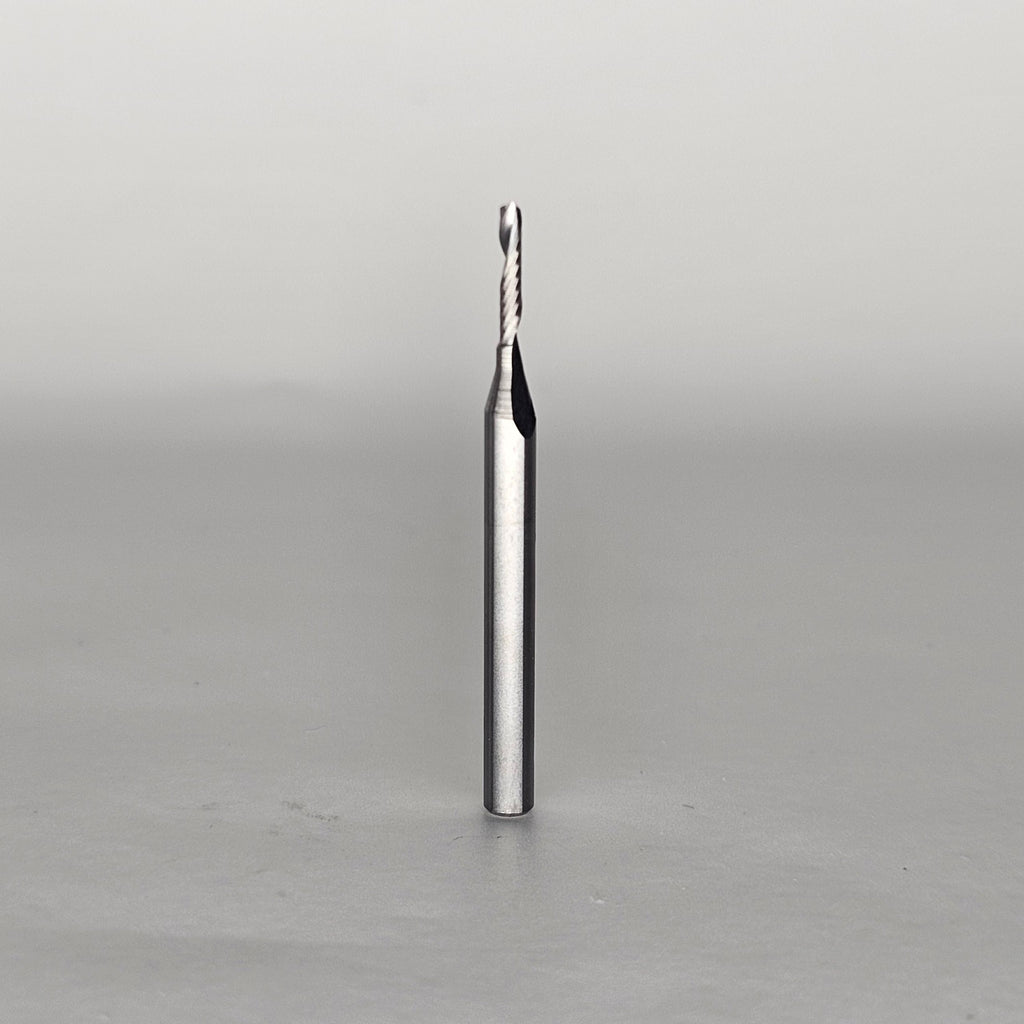

1/16" Carbide single Spiral "O" flute Upcut bit
$24.50
Sale price
$24.50
Regular price
FREE SHIP OVER $250
Usually ships within 24 hrs
shank
1/4"
Cut Length
3/16"
Diameter
1/16"
Material
Solid Carbide
flutes
1
coating
None
30-Day Guarantee
Free Ship $250+
Ships Canada
1/16" O-Flute Endmill — Fine Detail on Plastics, No Melting
Standard bits melt or gum up on plastic, especially at small diameters where heat builds fast. This 1/16" O-flute endmill's single-flute geometry evacuates chips efficiently, cutting clean through plastics, acrylics, PVC, HDPE, and ACM without material welding to the tool.
100% carbide construction holds a sharp edge through the slow, careful passes fine detail work demands.
Specs- Cut diameter: 1/16″
- Shank: 1/8″
- Length: 1.6″
- Flutes: 1
- Flute length: 0.325″
- Speed (rpm): 18,000
- Feed: 20 ipm
- Plunge: 15 ipm
- Depth per pass: 0.03″
- Stepover: 30%
Best for fine detail work in plastics and other heat-sensitive materials.
