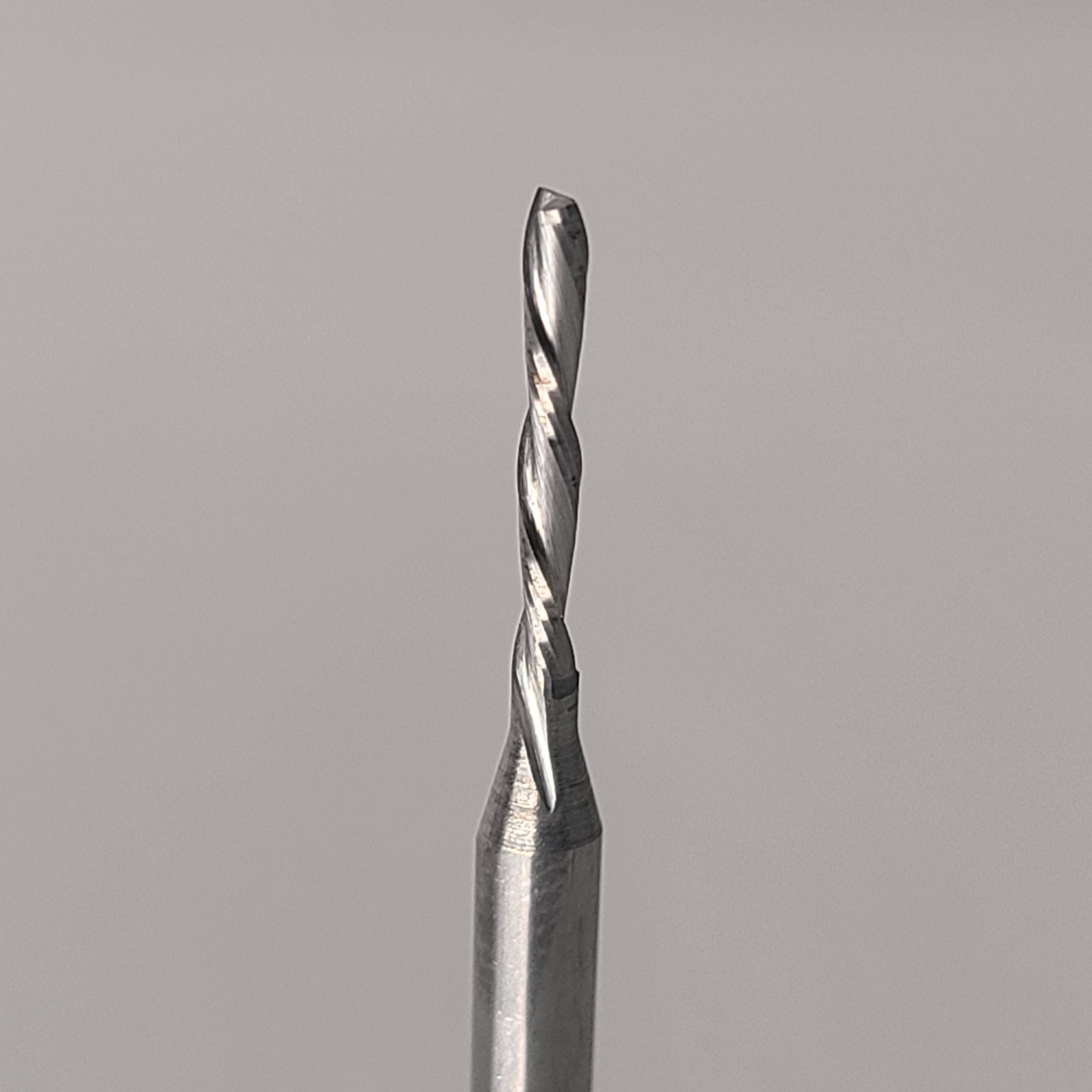

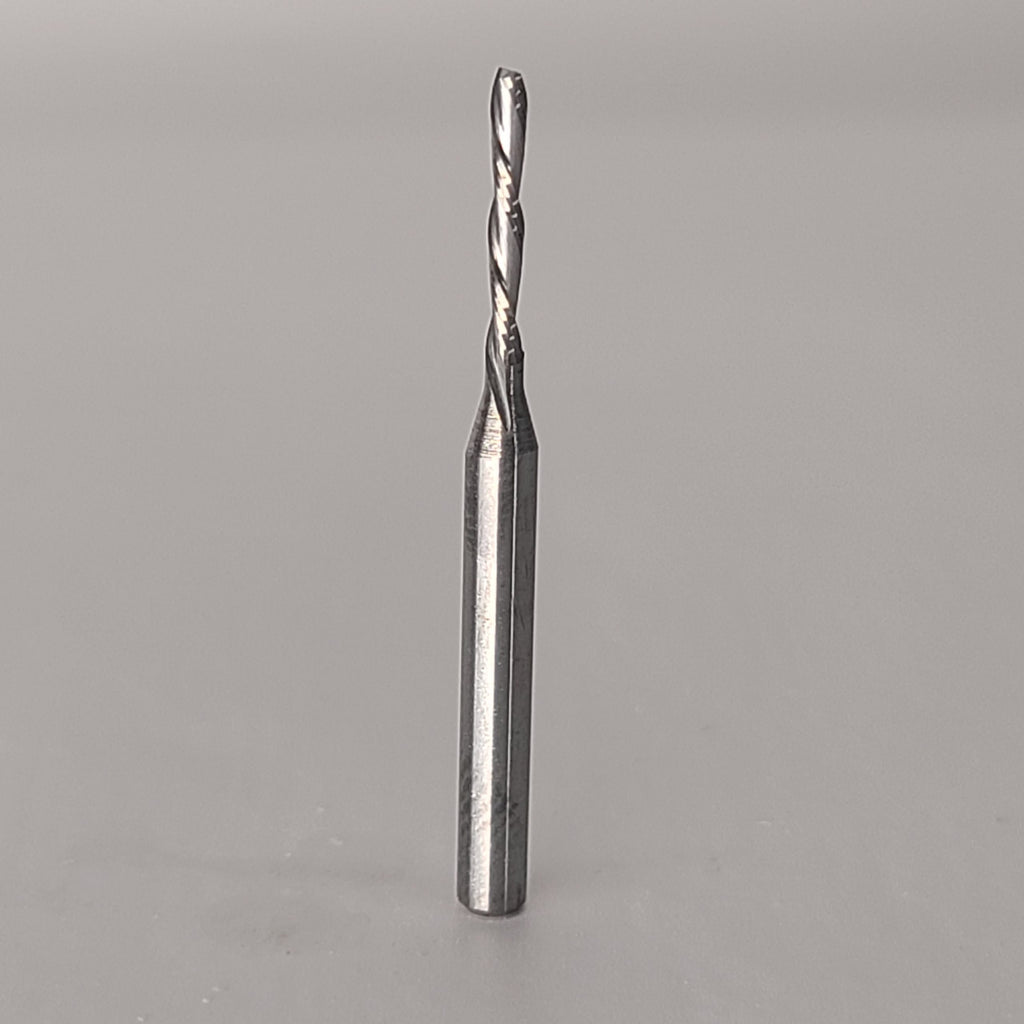

1/16" 2 Flute Long Cut Down-Cut Spiral bit
CNCBits

1/16" 2 Flute Long Cut Down-Cut Spiral bit

In stock
$26.50
$26.50
FREE SHIP OVER $250

Usually ships within 24 hrs

shank

1/4"

Cut Length

1/2"

Diameter

1/16"

Material

Solid Carbide

flutes

2

coating

None

30-Day Guarantee

Free Ship $250+

Ships Canada

1/16" Long-Cut Down-Cut Spiral Bit — Extra Reach for Deeper Detail

Standard-length micro bits run out of cut depth fast. This 1/16" down-cut spiral gives you extra length of cut for deeper detail passes, while still pulling chips downward for a clean, splinter-free top surface.

Solid carbide construction holds its edge through the slow, careful passes fine detail work demands.

Specs
  • Cut diameter: 1/16″
  • Shank: 1/8″
  • Length: 1.5″
  • Cut length: 0.5″
  • Material: 100% carbide
Settings
  • Speed (rpm): 18,000
  • Feed: 20 ipm
  • Plunge: 15 ipm

Best for fine detail carving where you need more reach than a standard-length bit offers.

What is a long-cut 1/16″ down-cut bit for?

Deeper detail passes. You get extra length of cut while it still pulls chips downward for a clean, splinter-free top surface.

What speeds and feeds should I use?

Start at 18,000 rpm, 20 ipm feed and 15 ipm plunge.

How much longer is the cut than the standard 1/16″ bit?

This one has a 0.5″ cut length on a 1.5″ overall length. The standard 1/16″ down-cut spiral has a 0.3″ cut length.

What collet size does it need?

A 1/8″ collet. The cutting diameter is 1/16″ on a 1/8″ shank.

What is it best for?

Fine detail carving where you need more reach than a standard-length bit offers.
